Recently I had a chance to unbox the ARRMA Infraction 6S BLX 1/7th scale RC Truck. While doing so I decided to create a video and post up some pictures of this amazing RC.
Check out the specs, video and images below.
| Brand | ARRMA RC |
| Name | Infraction Street Bash 6S BLX |
| Part Number | Blue ARA7615V2T1 / Silver ARA7615V2T2 |
| Color | Blue or Silver |
| Type | Onroad & Light Offroad Truck |
| Scale | 1/7th |
| RTR or Kit | RTR (Ready to Run) |
| Drive Type | 4WD |
| Battery Type | LiPo 2S x2, 3S x2, 4S x1, 6S x1 |
| Battery Requirement | 5000mAh at 30C Minimum |
| Battery Bay Size | 180 x 55 x 70mm or 7.08 x 2.16 x 2.76 inches |
| Stock Max Speed | 128km/h or 80mph |
| Length | 695mm / 27.36″ |
| Wheelbase | 406mm / 15.98″ |
| Front Width | 308mm / 12.13″ |
| Rear Width | 305mm / 12.01″ |
| Height | 200mm / 7.87″ |
| Ride Height | 15mm / 0.59″ |
| Weight no Battery | 5kg / 11lbs |
| Chassis Type | 3mm 6061-T6 Aluminum |
| Front Shocks | 16mm x 77mm Aluminum with 2000wt Oil |
| Rear Shocks | 16mm x 87mm Aluminum with 2000wt Oil |
| Wheel Width | 43mm / 1.69″ |
| Wheel Bead Diameter | 75/83mm / 2.95/3.27″ |
| Wheel Hex | 17mm |
| Differential Count | 3 – Front, Center and Rear |
| Front Differential | Steel 42T with 10,000cst Oil |
| Rear Differential | Steel 42T with 10,000cst Oil |
| Center Differential | Steet 46T with 100,000cst Oil |

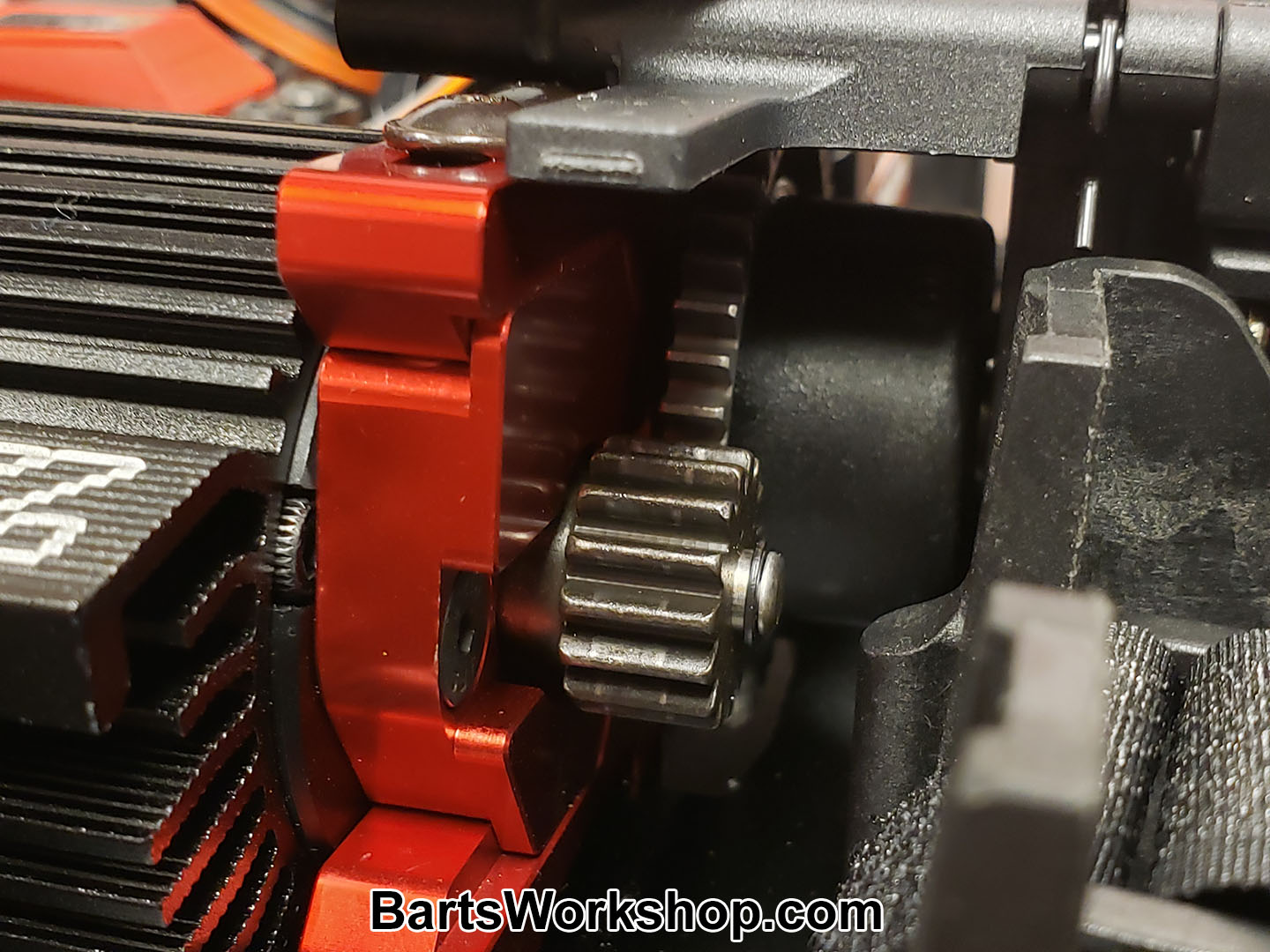

| Motor Pinion Gear | Steel 15T |
| Motor Spur Gear | Steel 46T |

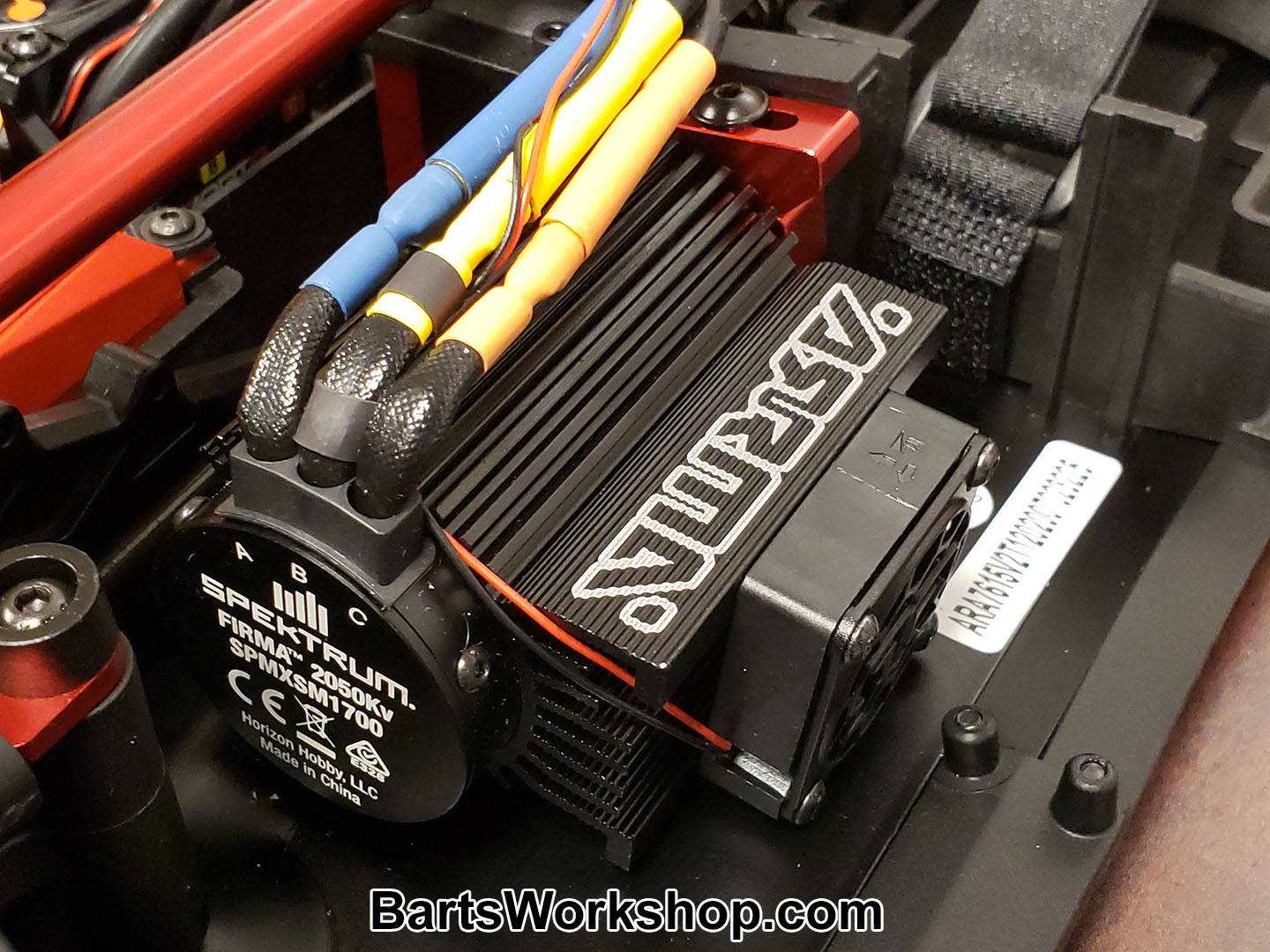

| Motor | Spectrum Firma BLX 4074 2050kV 4 Pole 6S Capable |

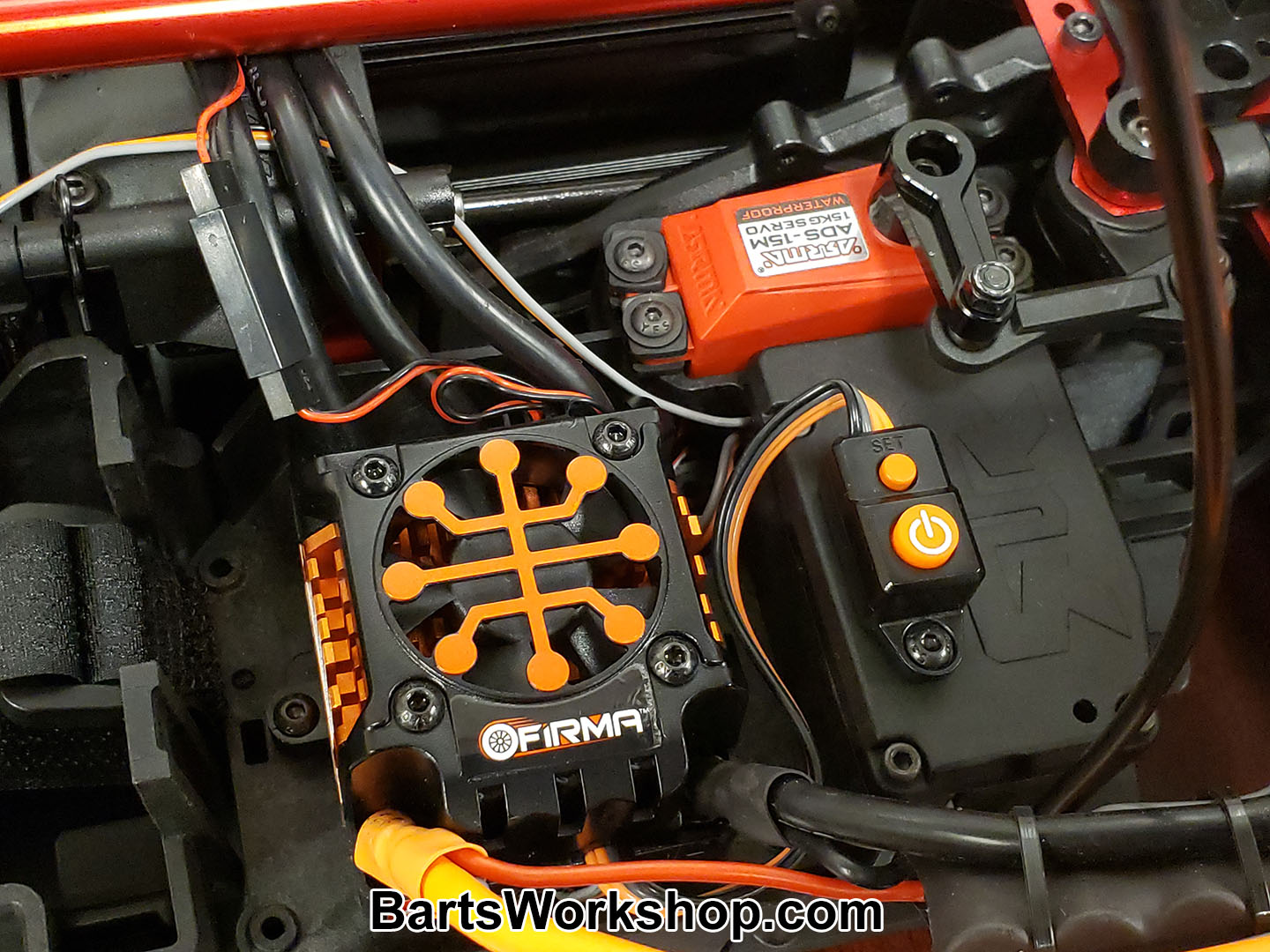

| ESC | Spectrum Firma 150 with IC5 Connectors |
| ESC BEC Output | 6V \ 5A BEC |

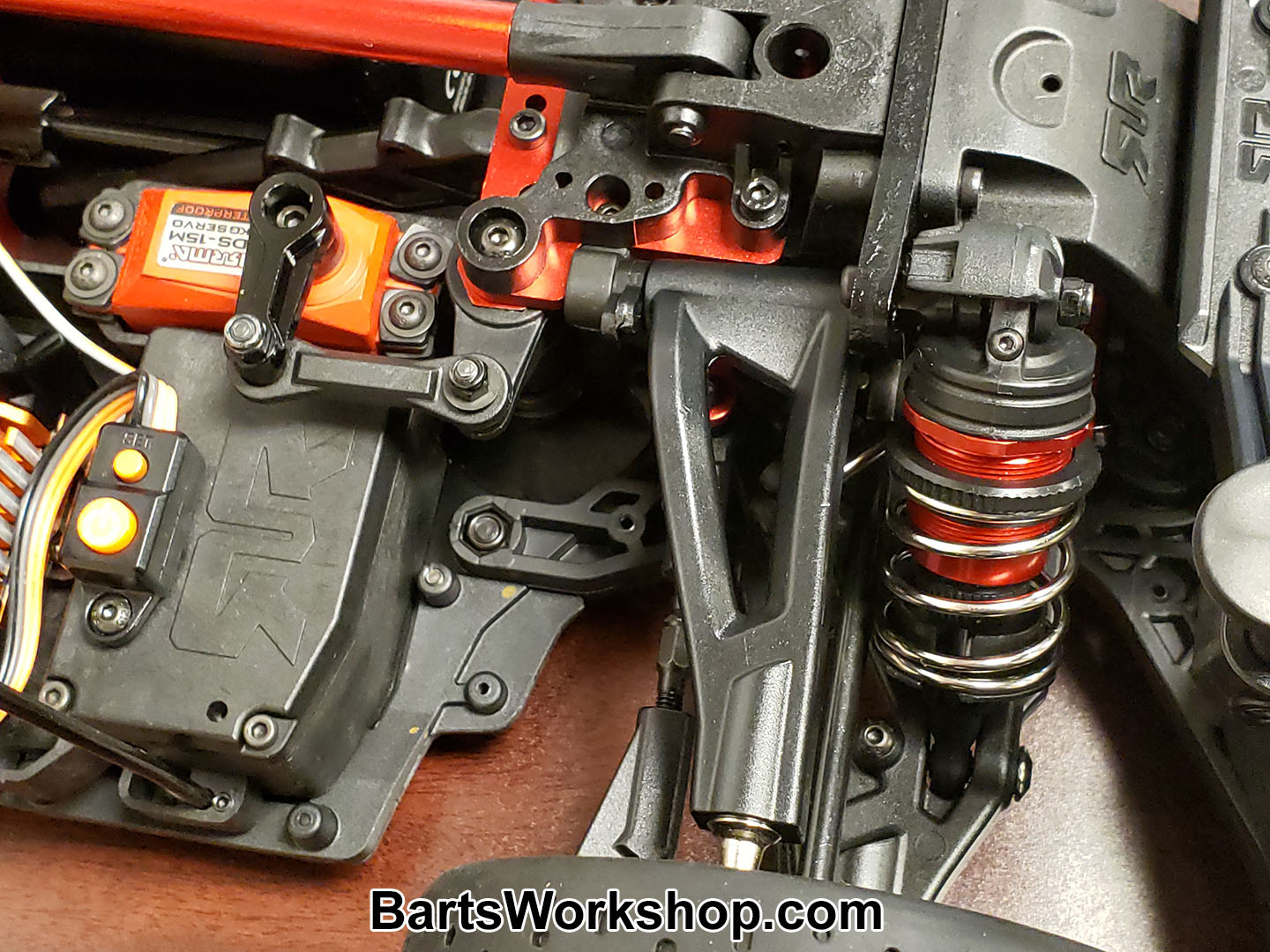

| Servo | ADS-15M Waterproof |
| Servo Torque | 14kg / 195oz-in at 6V or 15kg / 208oz-in at 7.2v |
| Servo Speed | 0.16sec at 6V |
| Servo Spline Count | 25T |

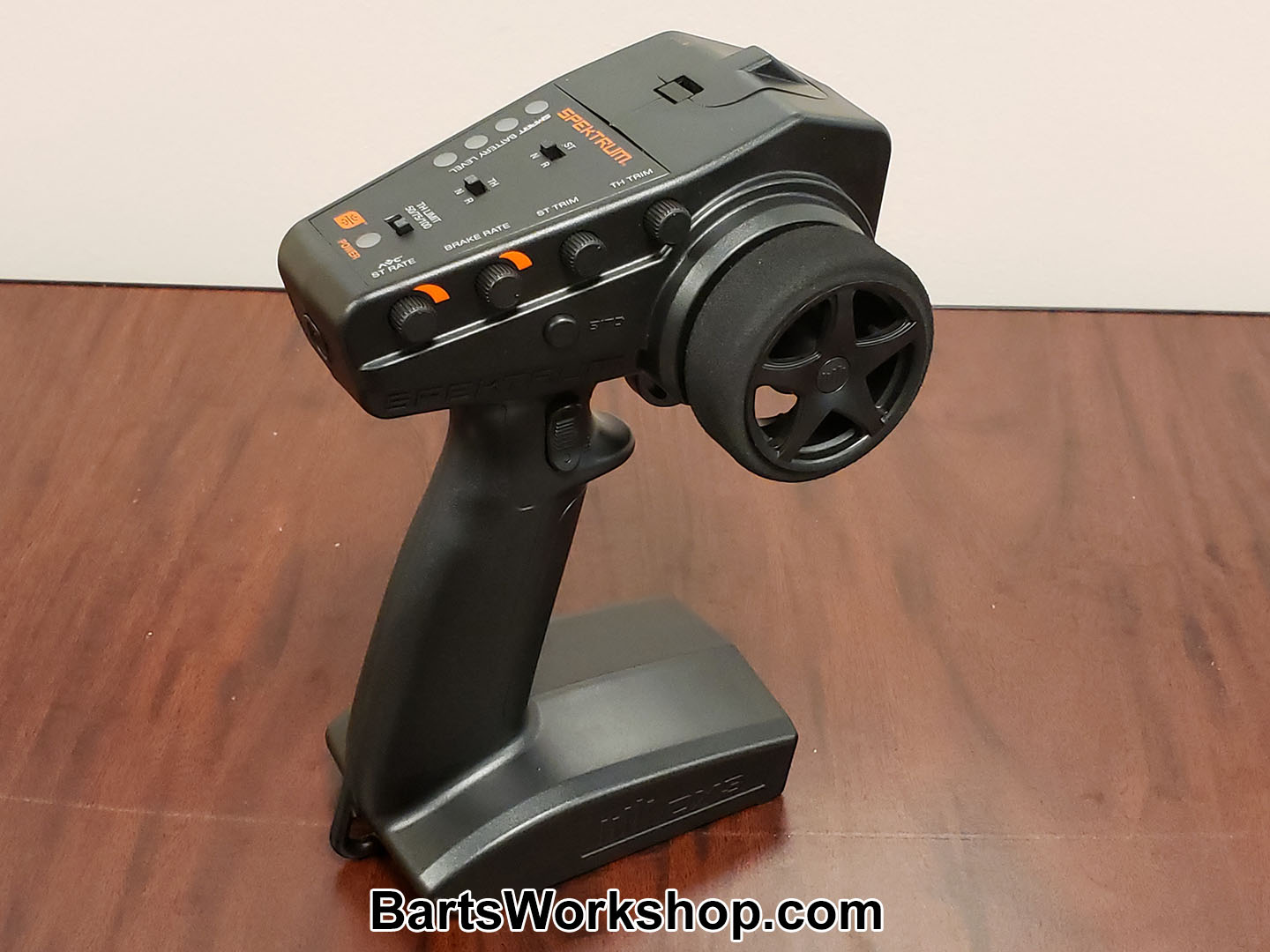

| Radio | Spectrum DX3 – 3 Channel 2.4Ghz Transmitter |
| Receiver | Spectrum SR6100AT – 6 Channel AVC/Telemetry |
| Required Gear | LiPo Battery, LiPo Charger and 4x AA Batteries |
