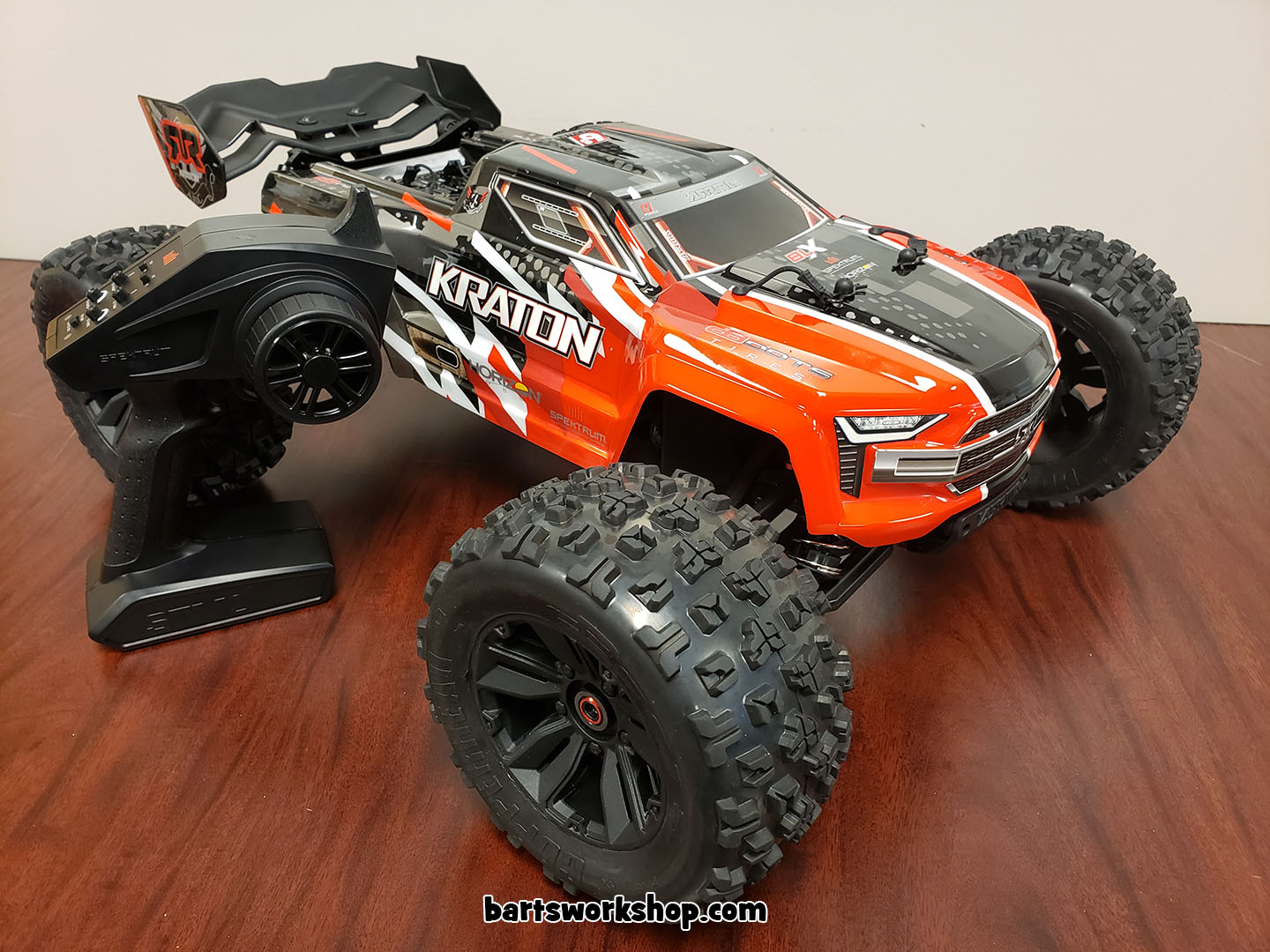

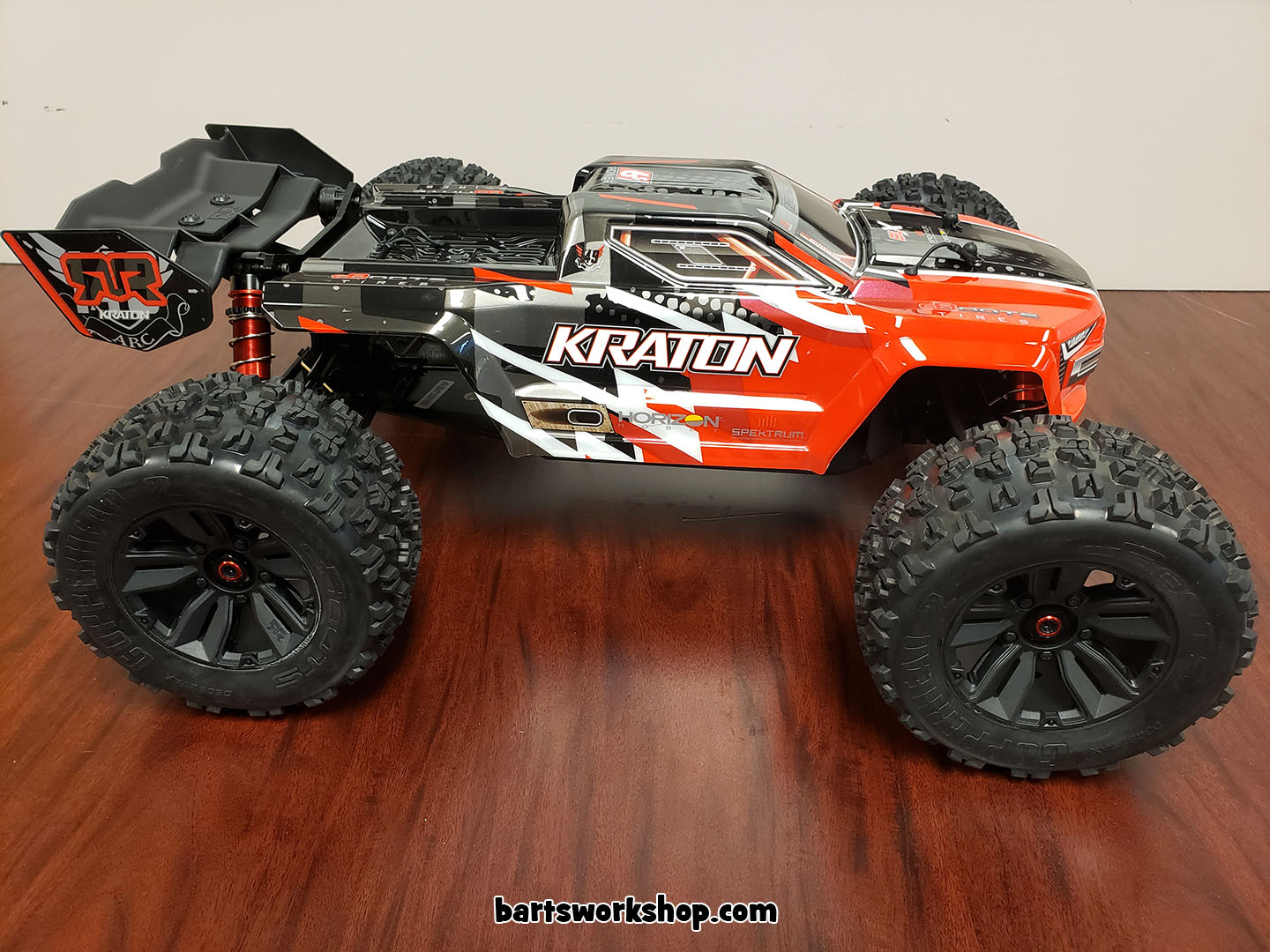

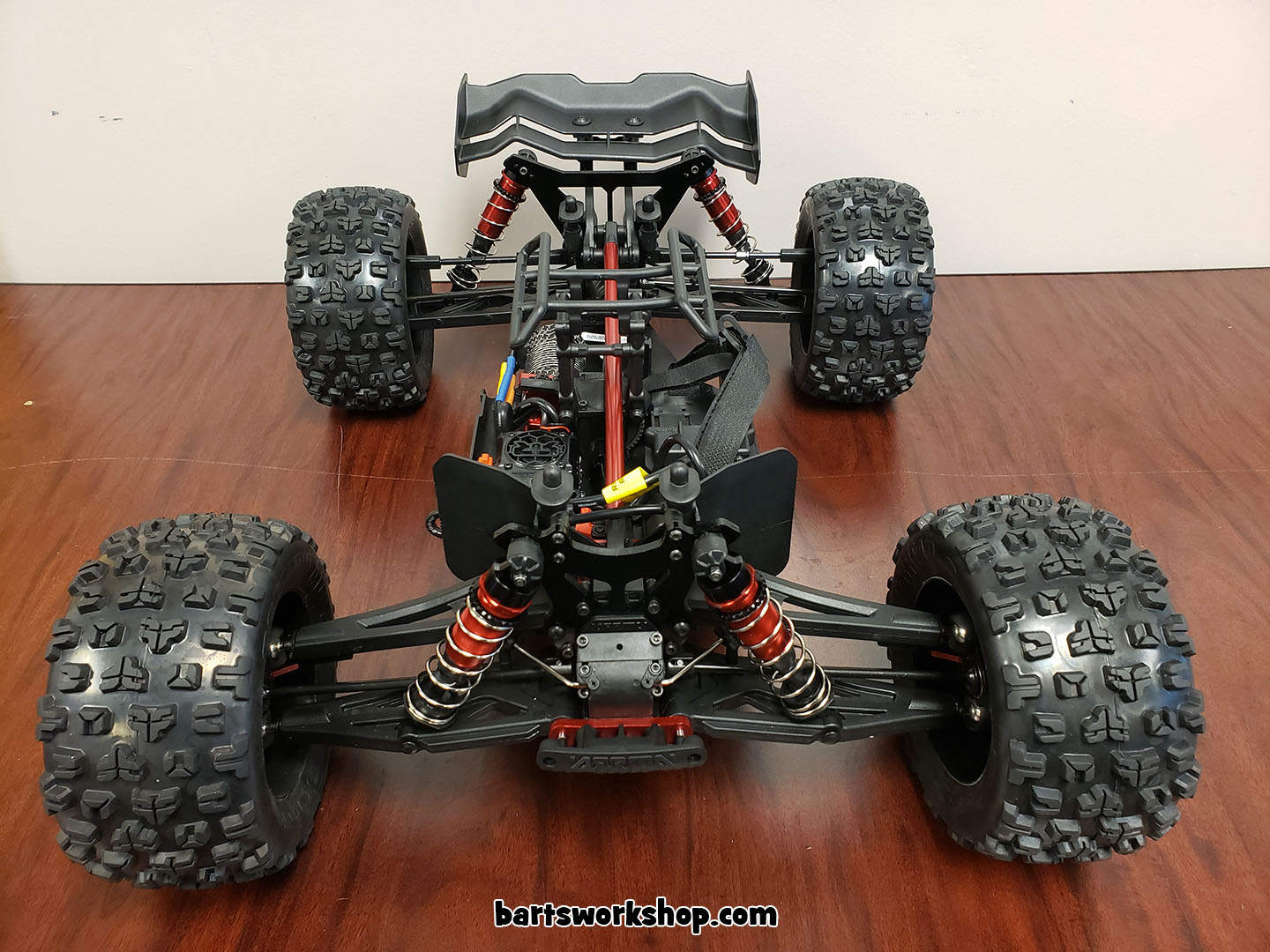

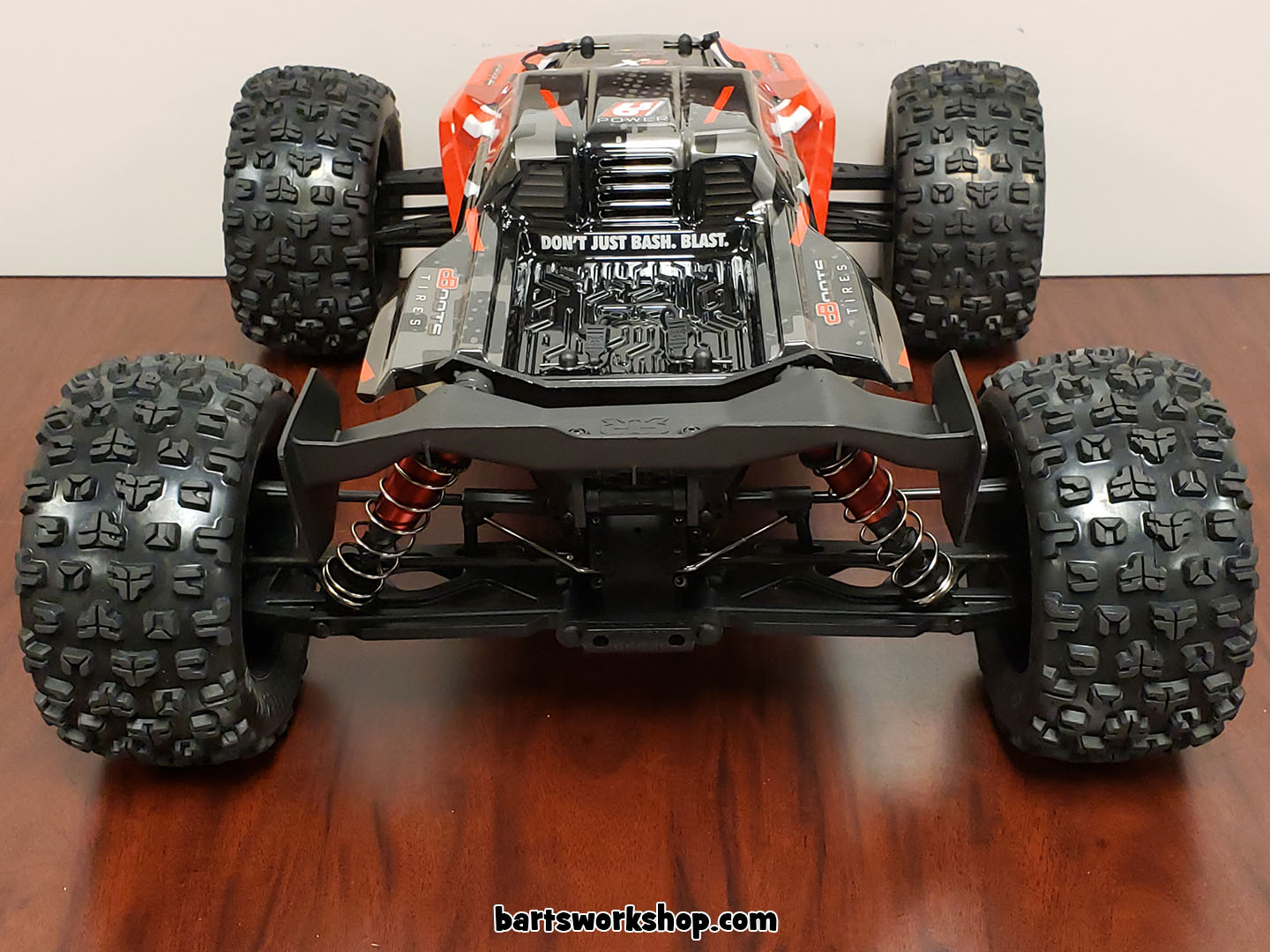

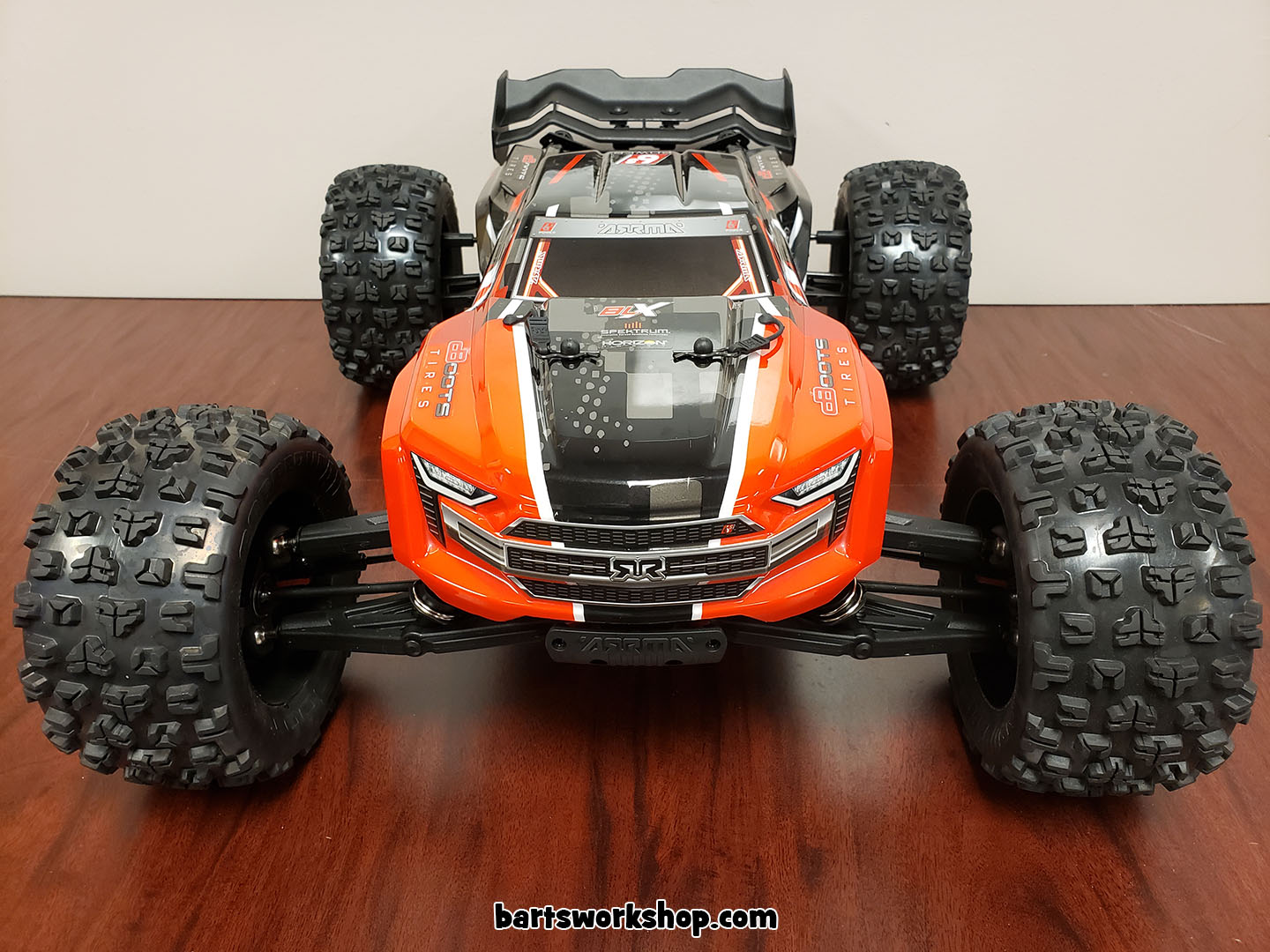

Unboxing the Arrma Kraton 6S BLX truck has been a fun time. I filmed the process and took some images so watch the video and enjoy the images below.
Specifications:
| Brand | ARRMA RC |
| Name | Kraton 6S BLX |
| Part Number | Red – ARA106040T1 / Blue – ARA106040T2 |
| Color | Red & Black or Blue & Black |
| Type | Offroad Monster Truck |
| Scale | 1/8th |
| RTR or Kit | RTR (Ready to Run) |
| Drive Type | 4WD |
| Battery Type | LiPo 2S x2, 3S x2, 4S x1, 6S x1 |
| Battery Requirement | 5000mAh at 30C Minimum |

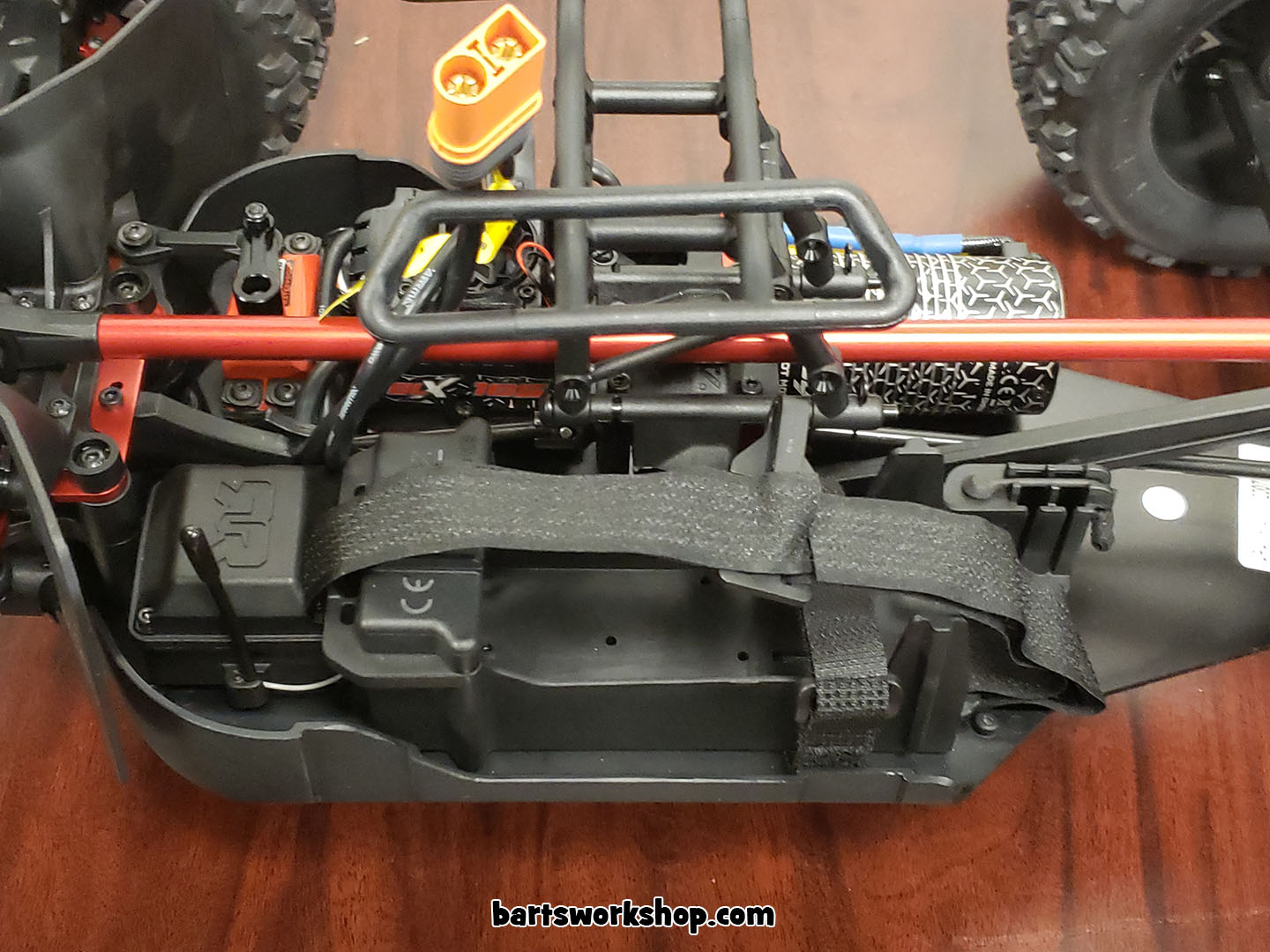

| Battery Bay Size | 158 x 48 x 70mm / 6.22 x 1.89 x 2.76 inches |
| Stock Max Speed | 96km/h or 60mph |
| Length | 594mm / 23.39″ |
| Wheelbase | 377mm / 14.84″ |
| Front Width | 461mm / 18.15″ |
| Rear Width | 461mm / 18.15″ |
| Height | 195mm / 7.68″ |
| Ride Height | 47mm / 1.85″ |
| Weight no Battery | 4.85kg / 10lbs 11oz |

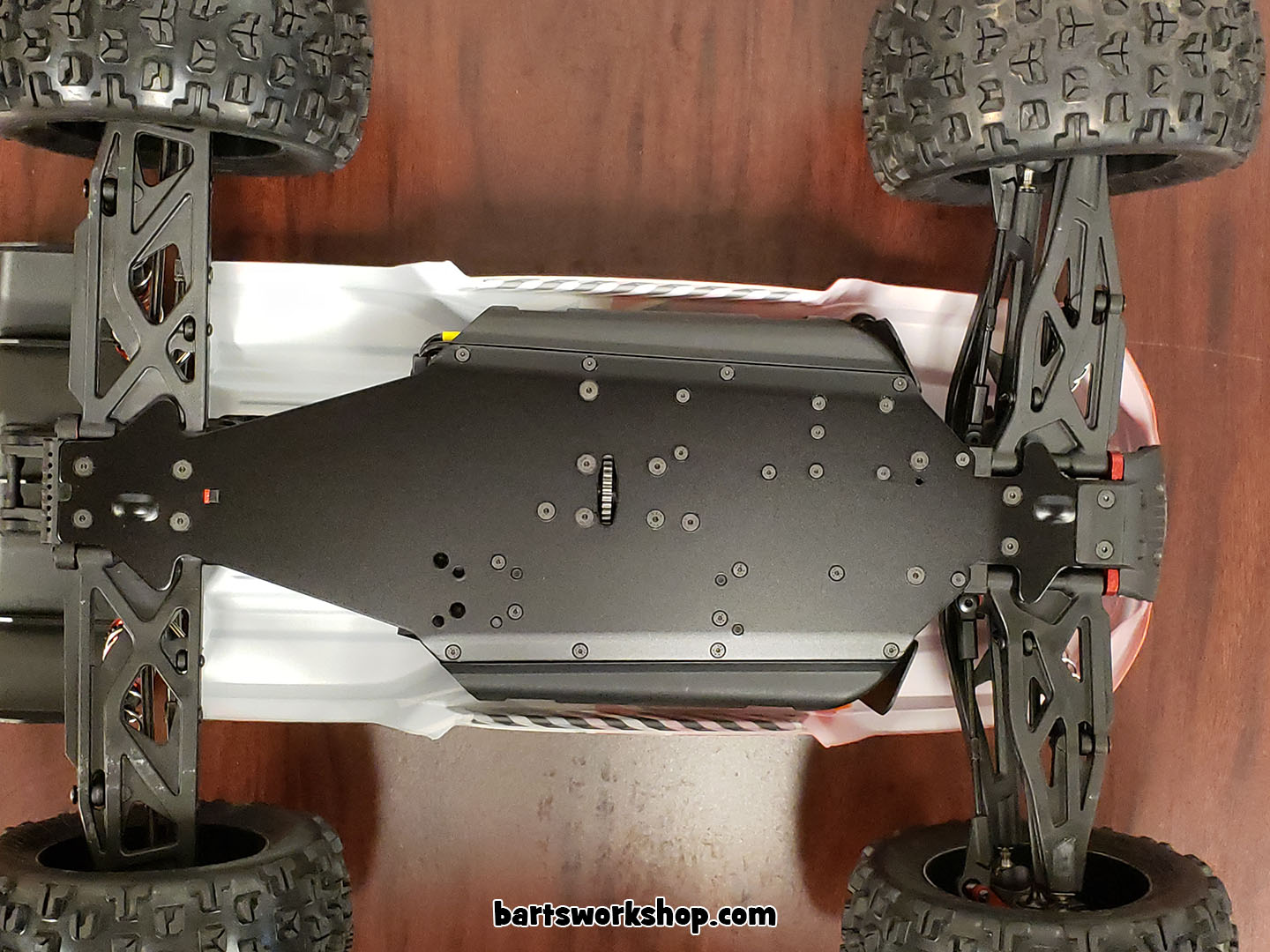

| Chassis Type | 4mm 6061-T6 Aluminum |

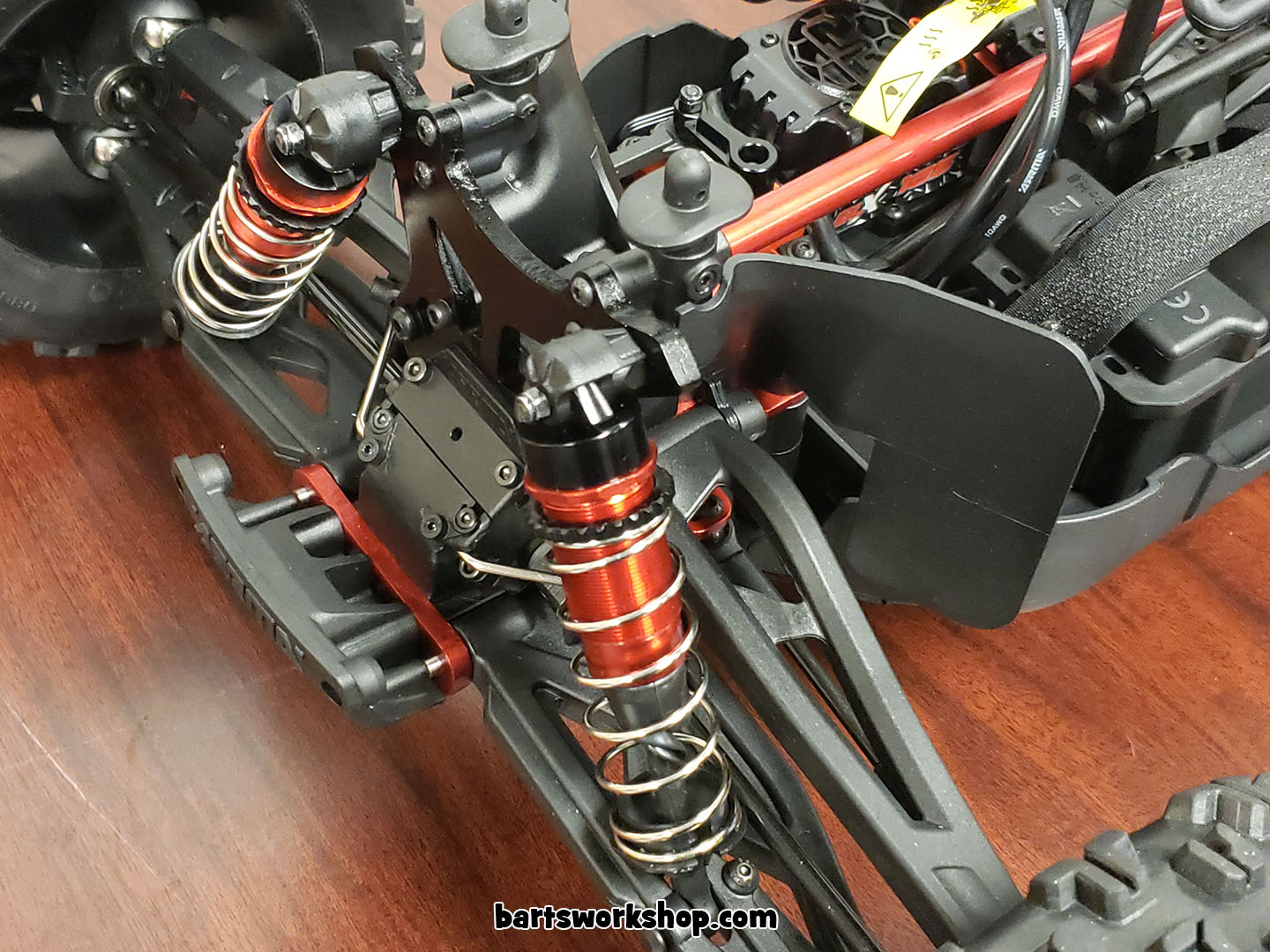

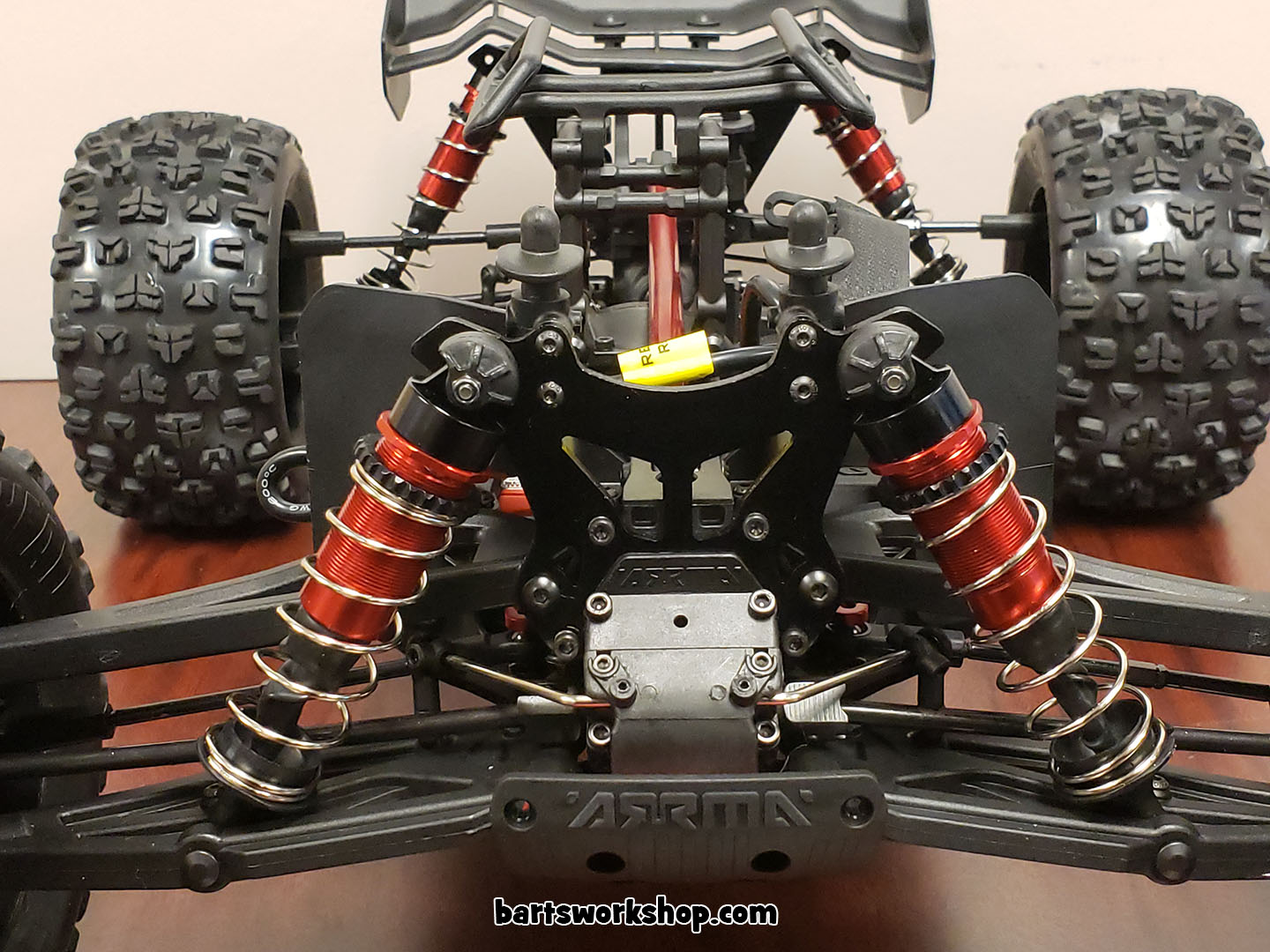

| Front Shocks | 16mm x 115mm Aluminum with 1000cSt(80wt) Oil |

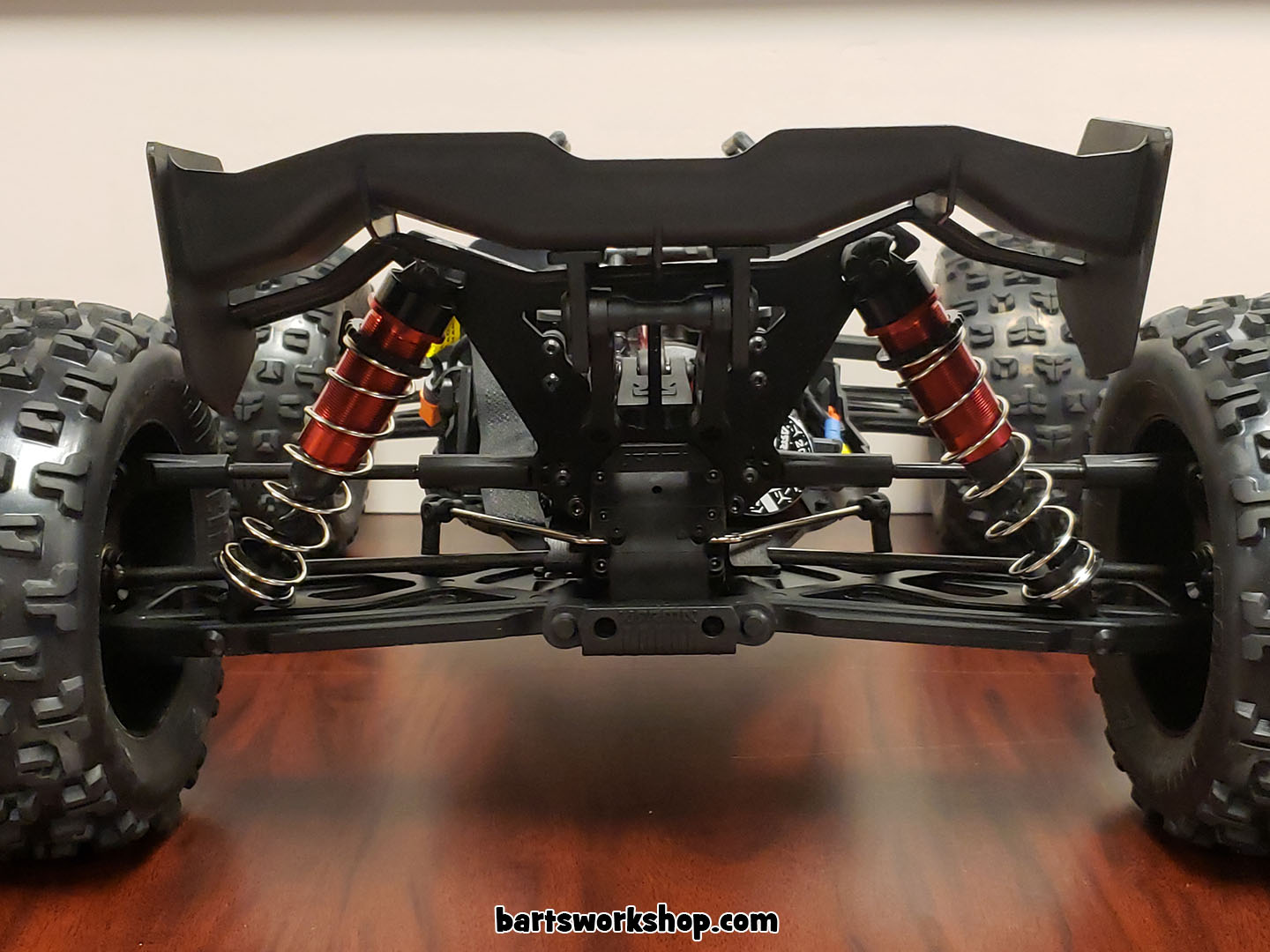

| Rear Shocks | 16mm x 134mm Aluminum with 1000cSt(80wt) Oil |
| Wheel Width | 81.5mm / 3.3″ |
| Wheel Bead Diameter | 97mm / 3.8″ |
| Wheel Hex | 17mm |

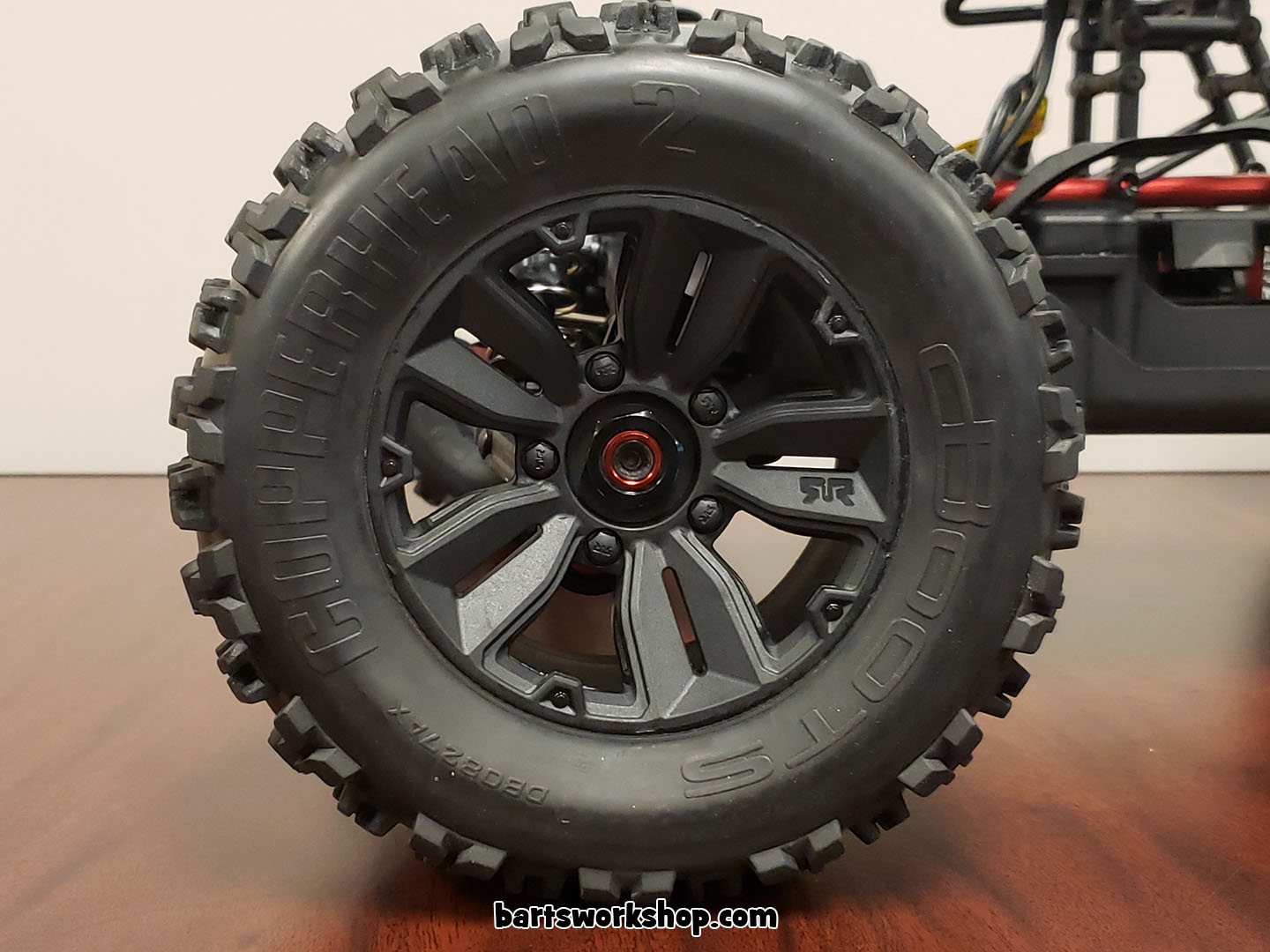

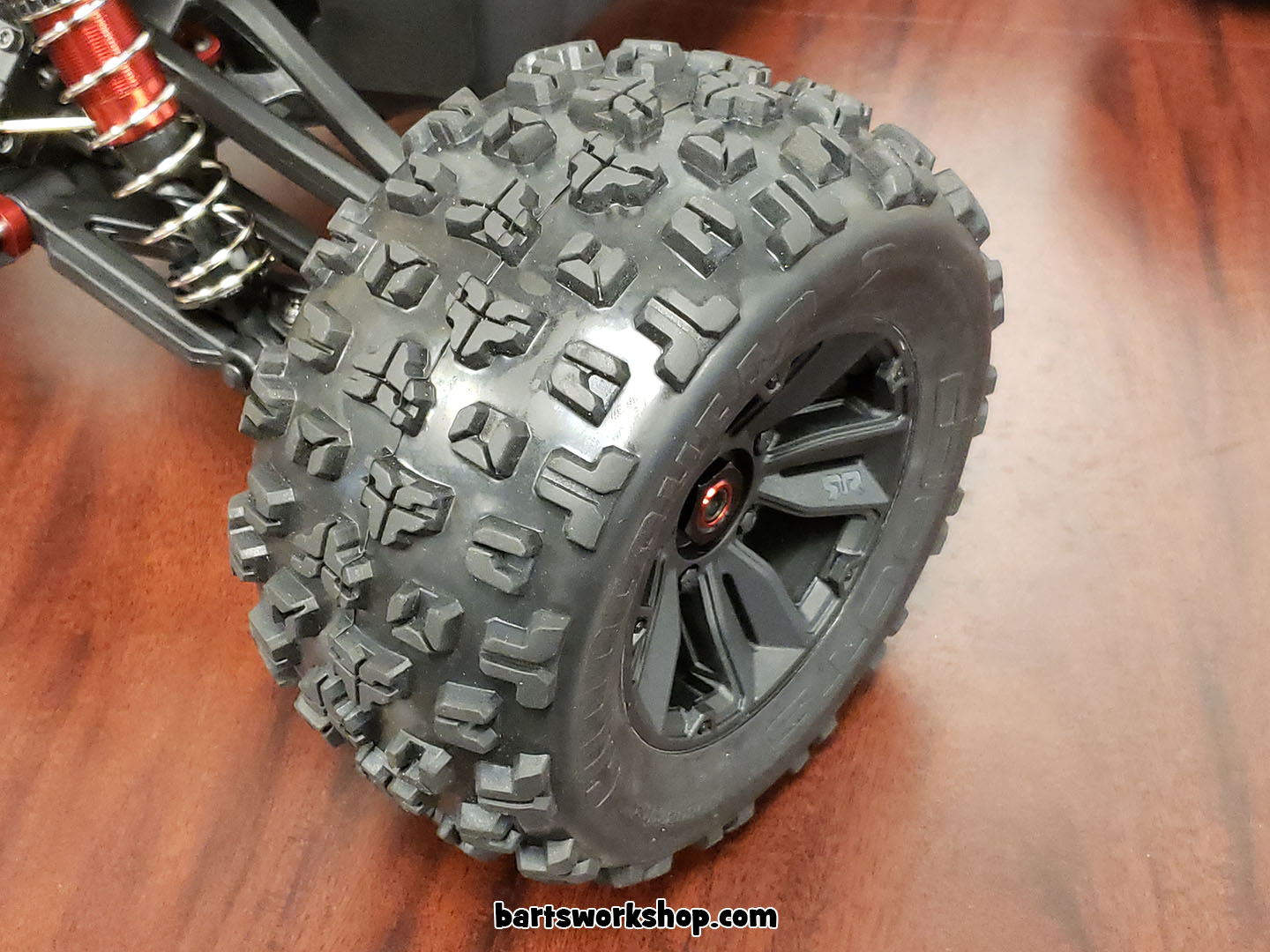

| Tires | dBoots COPPERHEAD2 Tires |
| Differential Count | 3 – Front, Center and Rear |
| Front Diff Ring Gear | Steel 43T with 10,000cst Oil |
| Front Diff Pinon Gear | Steel 10T |
| Rear Diff Ring Gear | Steel 43T with 10,000cst Oil |
| Front Diff Pinon Gear | Steel 10T |
| Center Diff Ring Gear | Steet 50T with 100,000cst Oil |
| Spur Gear | Steel 50T |
| Motor Pinion Gear | Steel 12T |

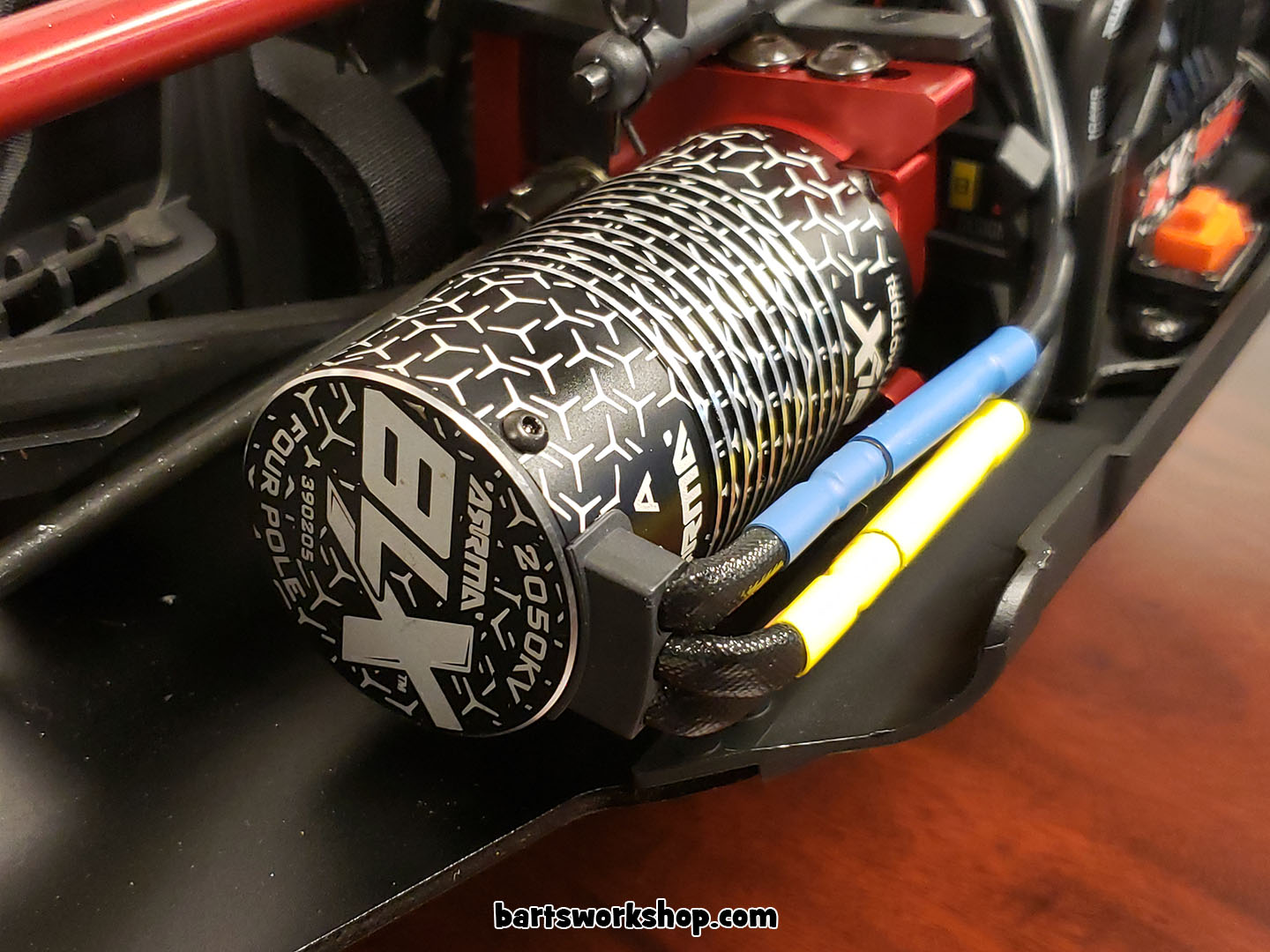

| Motor | BLX 4074 2050kV 4 Pole 6S Capable |
| ESC | BLX 185 with IC5 Connectors |
| ESC BEC Output | 6V \ 3A BEC |
| Steering Servo | ADS-15M Waterproof |
| Servo Torque | 14kg / 195oz-in at 6V or 15kg / 208oz-in at 7.2v |
| Servo Speed | 0.16sec at 6V |
| Servo Spline Count | 25T |

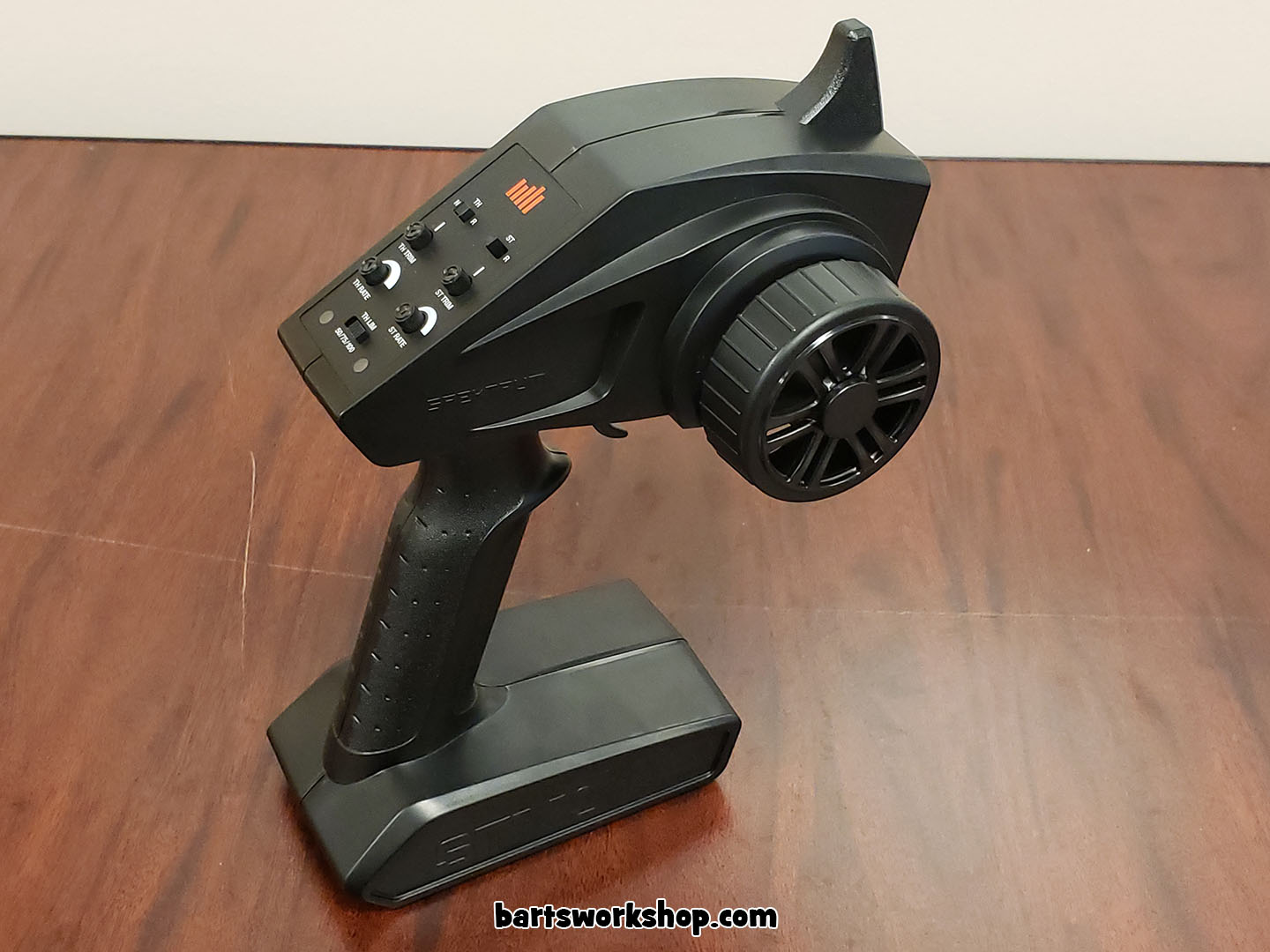

| Radio | Spektrum STX2 – 2 Channel 2.4Ghz Transmitter |
| Receiver | Spektrum SRX200 – 2 Channel |
| Required Gear | LiPo Battery, LiPo Charger and 4x AA Batteries |
